Industrial Chimney Manufacturers and Suppliers in Hyderabad

Industrial Chimney Suppliers in Hyderabad

Bulk-drug plants in Patancheru, Pashamylaram, Bollaram and Jeedimetla usually operate coal-fired boilers, thermic-fluid heaters and, at many sites, incinerators for solvent residues, and each stack must carry monitoring ports at a point where the gas flow has settled. Incinerator stacks suffer most, because chlorinated solvents form acid gases that condense on a cold shell; these are often lined or given a heavier top section. Formulation and biotech units in Genome Valley, the city's food processors and its engineering plants mostly need modest stacks for packaged boilers, process heaters and standby DG sets.

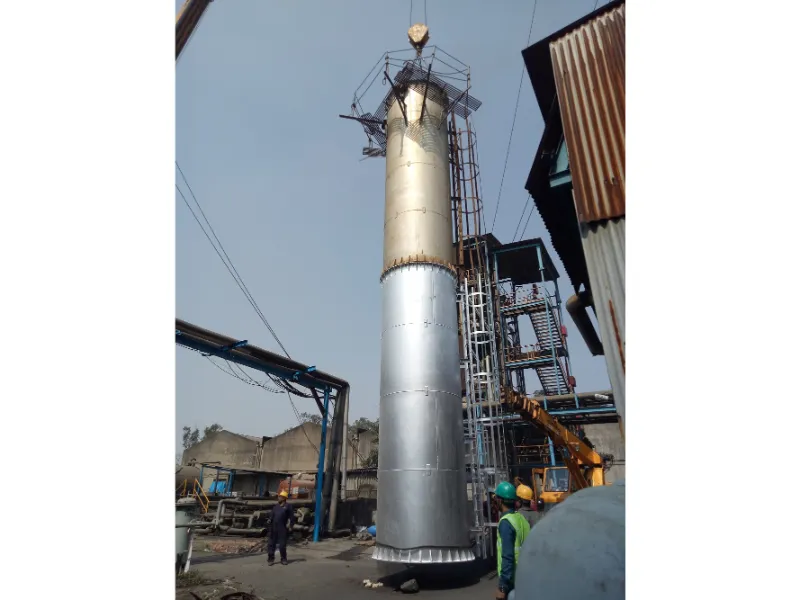

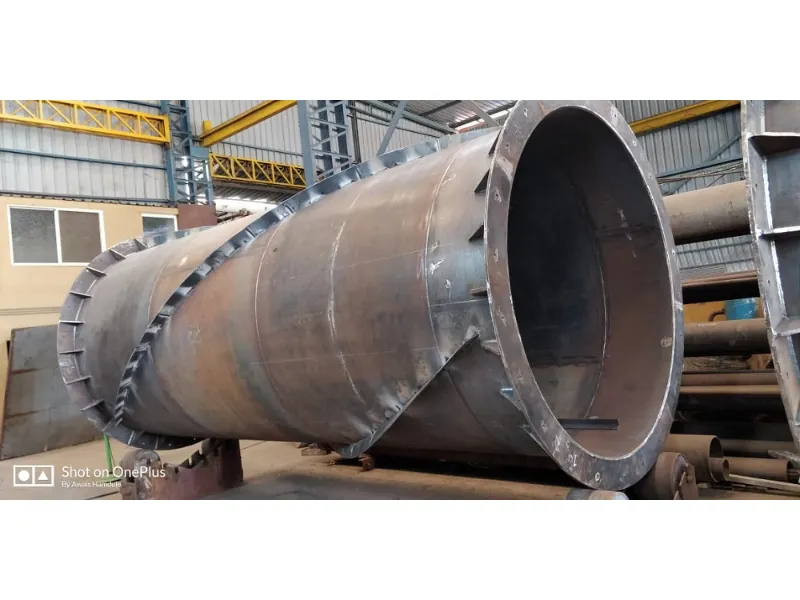

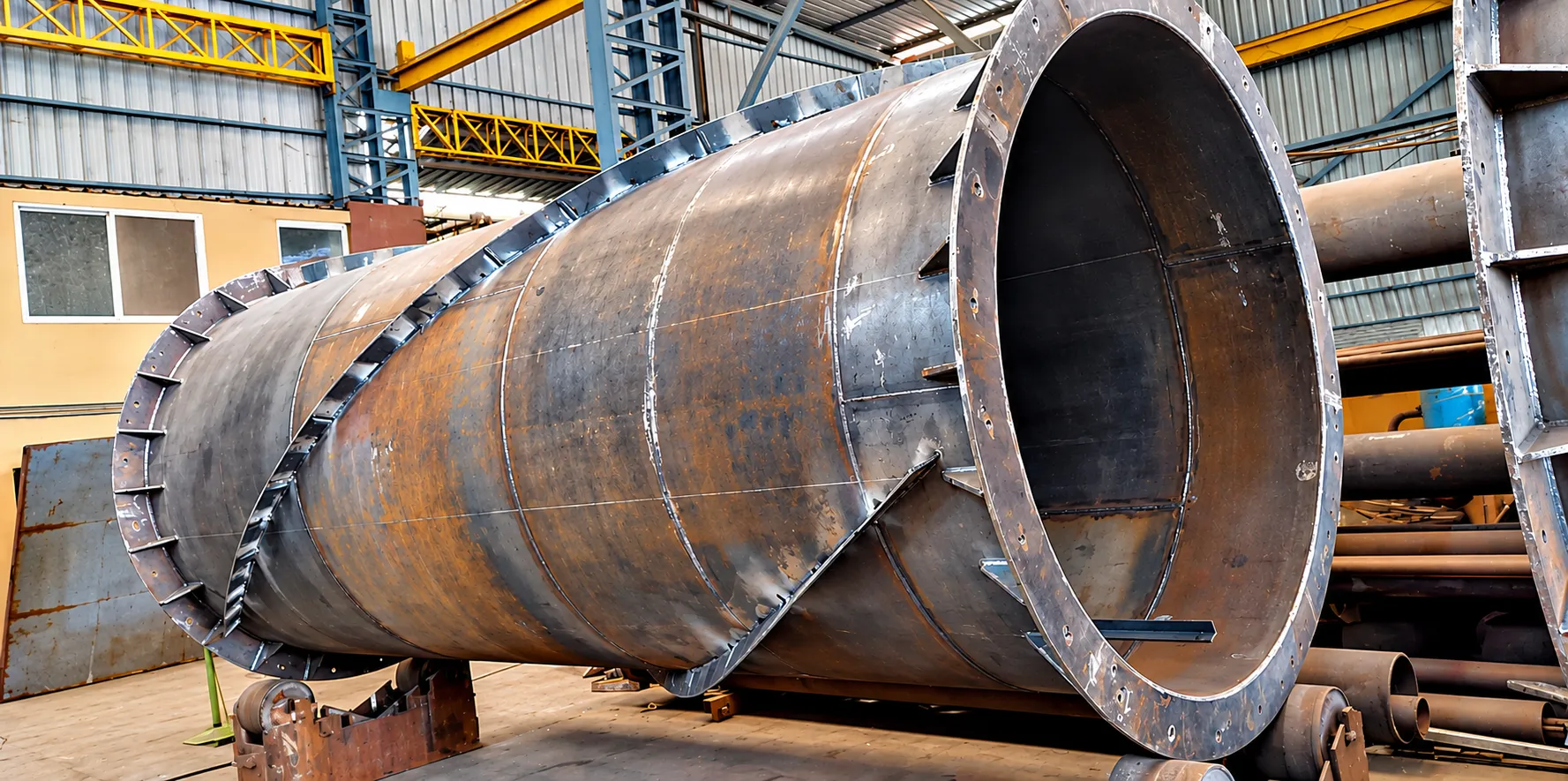

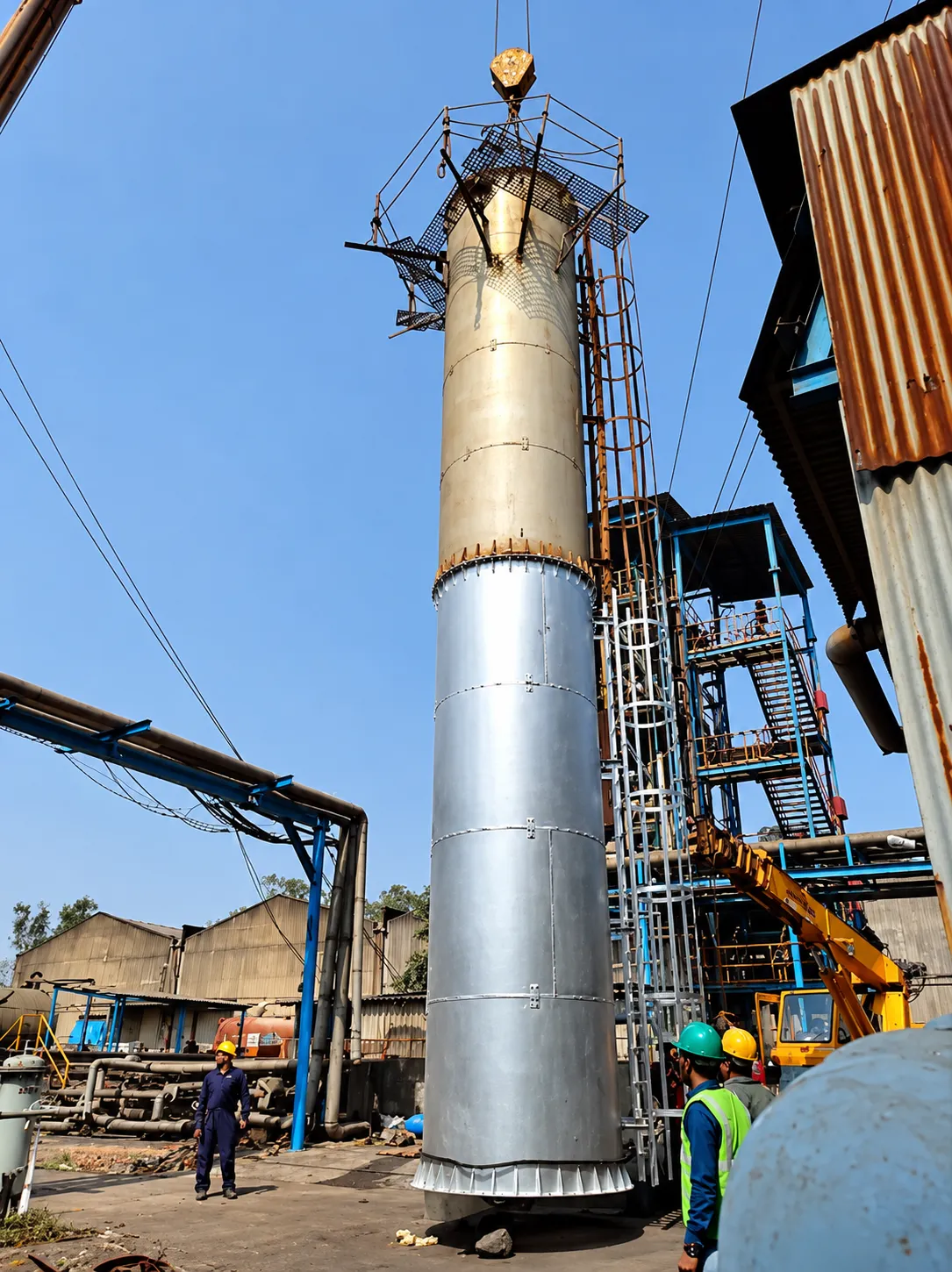

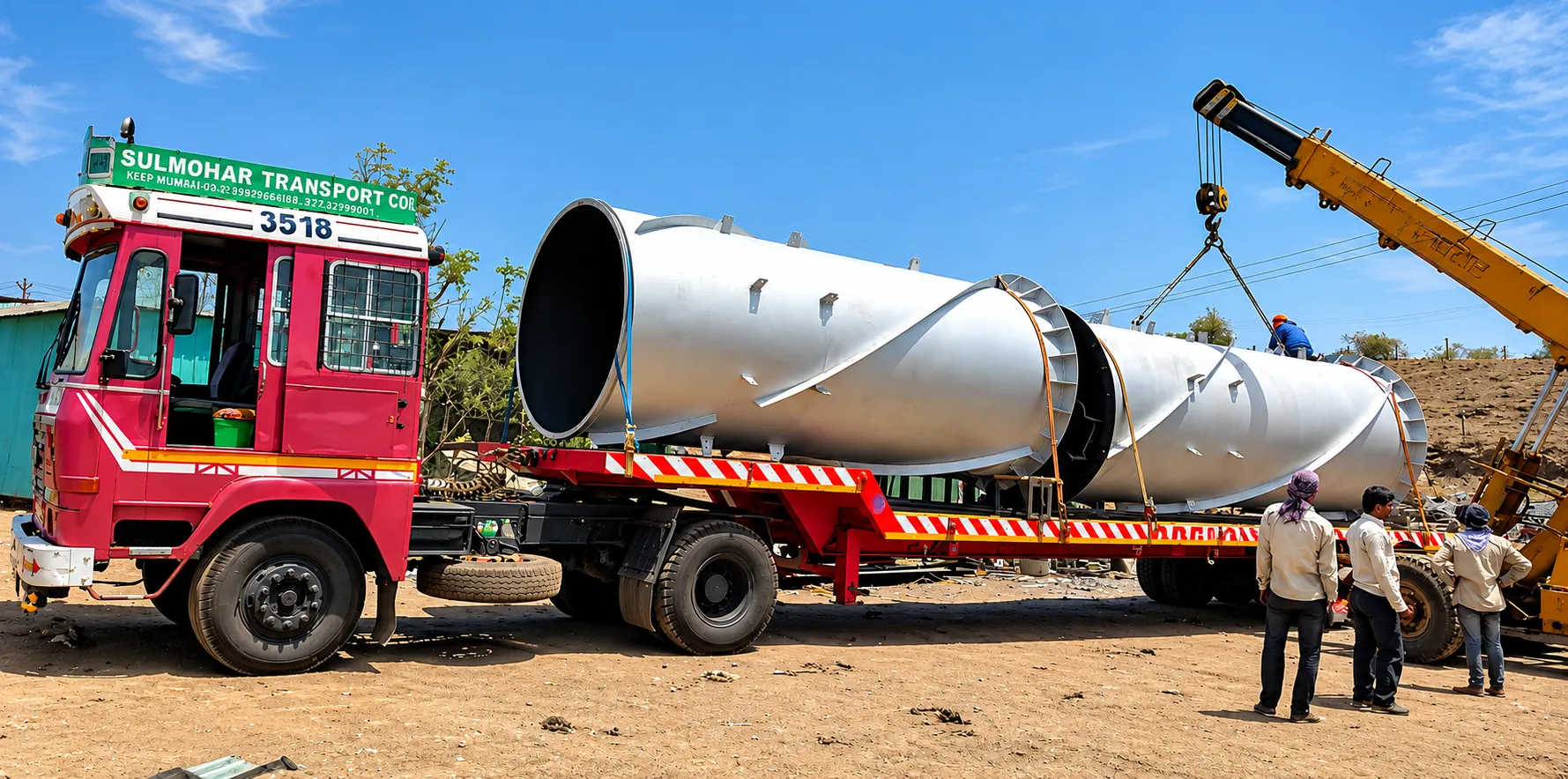

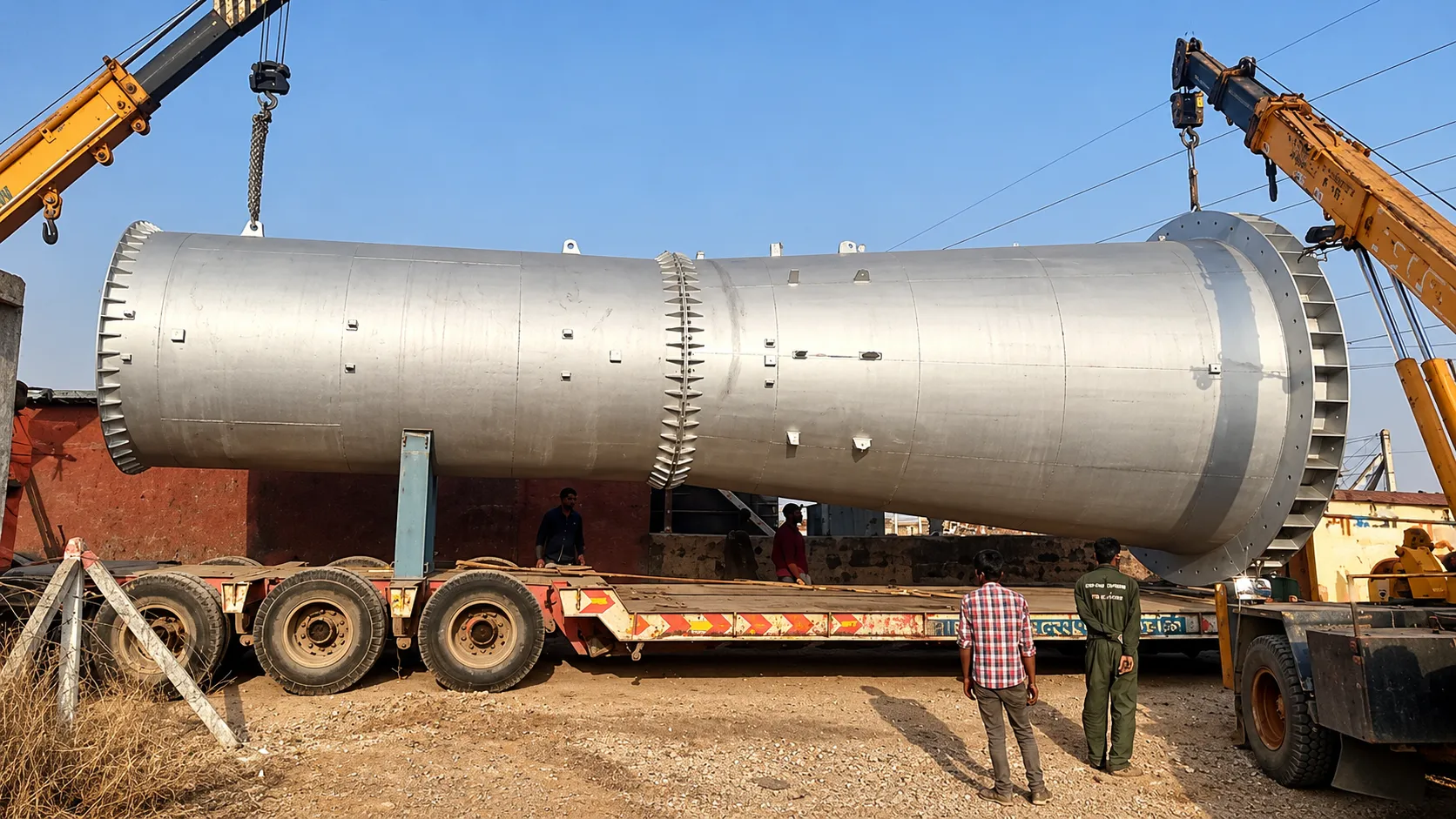

The Deccan summer around Hyderabad is long and hot, and the squalls that arrive just before the monsoon usually govern a slender stack's design, so wind load to IS 875 Part 3 and shell temperature are checked together. At about 560 km from Bhosari, the practical approach is to complete welding, inspection and painting at our works and ship flanged sections that a mobile crane can erect in a short window. Many API units cannot stop their boilers for long, so a replacement stack is often erected beside the old one and the breeching switched over during a brief planned shutdown.

Sterling, established in 1995, designs chimneys to IS 6533 Part 2 (1989), takes wind loads from IS 875 Part 3, and builds free-standing or guyed stacks between 300 and 3700 mm in diameter in its works at Bhosari, Pune. For hot or corrosive duties an internal refractory or ceramic-wool lining, clad in stainless steel, protects the shell. A useful enquiry from a Hyderabad plant includes the equipment and fuel, flue-gas flow and temperature, the stack height and port positions set by your Telangana consent, and foundation details. Send these through the enquiry form or call +91-968-901-1211.

Specifications

• Minimum Order Quantity :01 Nos
• Material :M.S. IS: 2062- 2006
• Usage/Application :For Disposal of Combustion Products, Fumes etc.of Furnaces as well as Heating and Fume Extraction
• Chimney Height :As per Client Requirement
• Mount Type :Self Supported
• Filters :Baffle Filter
• Color :Aluminium Heat Resistant Paint
• Thickness :variable thickness as per application
• Size :As per Design
• Thread Size :As per Design

Industrial Chimneys for Hyderabad’s Industries

Hyderabad is India’s largest bulk-drug manufacturing centre. Most API and intermediate plants sit in the Patancheru, Pashamylaram, Bollaram and Jeedimetla industrial areas, with biotech and formulation units in Genome Valley. Food processing and engineering units make up much of the rest.

Most industrial chimneys enquiries from Hyderabad come from pharmaceutical and bulk-drug units, chemical and dyestuff plants, food, dairy and edible-oil plants and auto-component and engineering plants, mainly in Patancheru, Pashamylaram, Bollaram and Jeedimetla industrial areas and Genome Valley. What each of them typically needs:

• Pharmaceutical and bulk-drug units: Boilers, thermic-fluid heaters and incinerators need stacks with sampling ports positioned for stack monitoring.
• Chemical and dyestuff plants: Boiler and thermic-fluid heater exhausts and process vents need chimneys of the height set in the unit’s consent to operate.
• Food, dairy and edible-oil plants: Packaged boilers and DG sets usually need smaller self-supporting chimneys.
• Auto-component and engineering plants: Paint-shop ovens, heat-treatment furnaces and DG sets each need their own stack.

Site conditions and delivery to Hyderabad

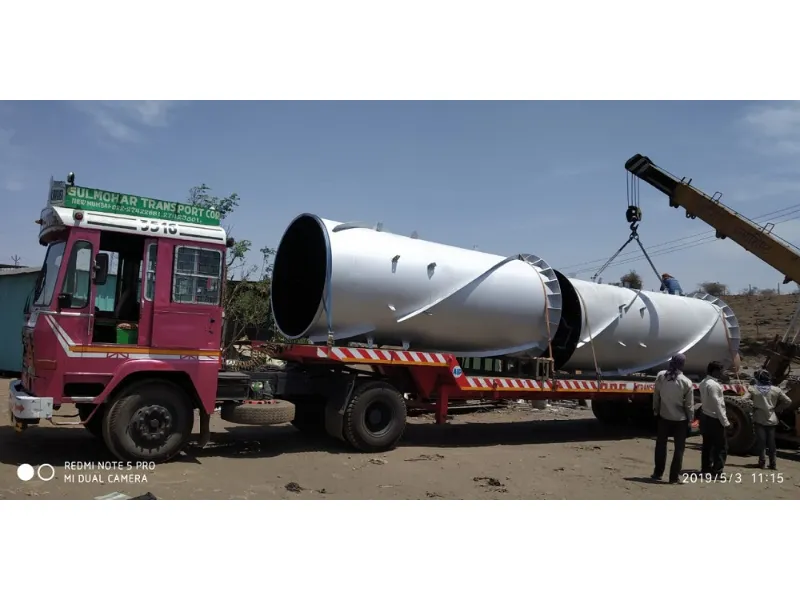

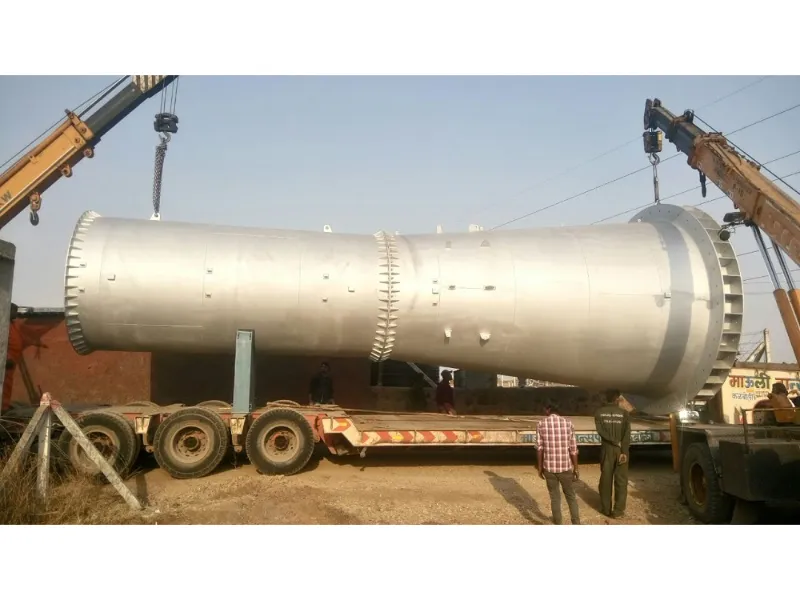

High summer temperatures and strong pre-monsoon winds are factored into the chimney’s thermal and wind-load design. Hyderabad is about 560 km by road from our works at MIDC Bhosari, Pune, about a day’s transit, so most assemblies are shipped fully fabricated and tested.
